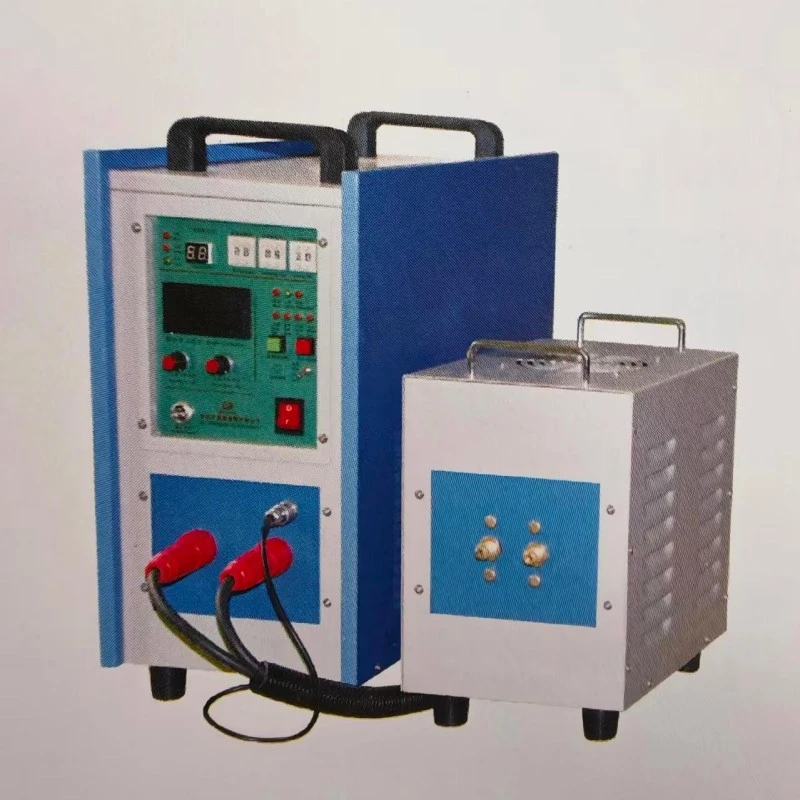

Induction Brazing Equipment

Induction brazing equipment uses electromagnetic induction to generate heat directly within the metal components to be joined. An alternating current passed through an induction coil creates a magnetic field that induces eddy currents in the workpiece, generating rapid, localized, and precisely controlled heat . The filler metal (brazing alloy) is melted and drawn into the joint by capillary action, creating a strong, permanent bond without melting the base materials .

Available in configurations from 6 kW to over 200 kW, with frequencies ranging from 10 kHz to over 1 MHz, induction brazing systems serve a wide range of industries including HVAC, automotive, aerospace, electronics, appliance manufacturing, and power generation. Systems range from compact handheld units for field repairs to fully automated multi-station production lines .

1. Rapid, Localized Heating
Induction heating delivers heat only to the defined area requiring brazing, leaving adjacent components and heat-sensitive parts completely unaffected . Heating cycles are extremely short compared to flame or furnace brazing, significantly improving throughput and reducing cycle times .

2. Superior Energy Efficiency
Induction brazing equipment achieves energy savings of 30%–40% compared to conventional electric furnaces and ovens . Compared to older vacuum tube high-frequency equipment, IGBT-based systems can save up to 70% of energy consumption . The process uses electricity directly, without requiring flammable or explosive gases, resulting in dramatically lower operating costs .

3. Precise Digital Control
Modern induction brazing systems feature full digital control with:

Programmable heating profiles with up to 5 independent segments for preheat, heating, and holding stages

Multiple workpiece parameter storage (typically 8–30 sets) for rapid changeover

Real-time monitoring of current, voltage, frequency, and temperature

Fault diagnosis with error code display for simplified troubleshooting

4. Clean, Safe Operation
Induction brazing produces no combustion emissions, carbon monoxide, or carbon dioxide . Without open flames or gas cylinders, the process offers superior workplace safety and environmental compliance. The hazard-free operation meets modern factory requirements for clean, safe production environments.

5. Outstanding Brazing Quality

Uniform Heating: The electromagnetic stirring effect ensures even heat distribution, eliminating cold spots and overheating

Minimal Oxidation: Rapid heating cycles and optional inert gas protection (nitrogen) reduce oxide formation

Clean Appearance: Brazed joints exhibit smooth surfaces with no visible weld knots, preserving the geometric integrity and internal crystal structure of base materials

Consistent Results: Programmable control ensures repeatable quality across production batches
