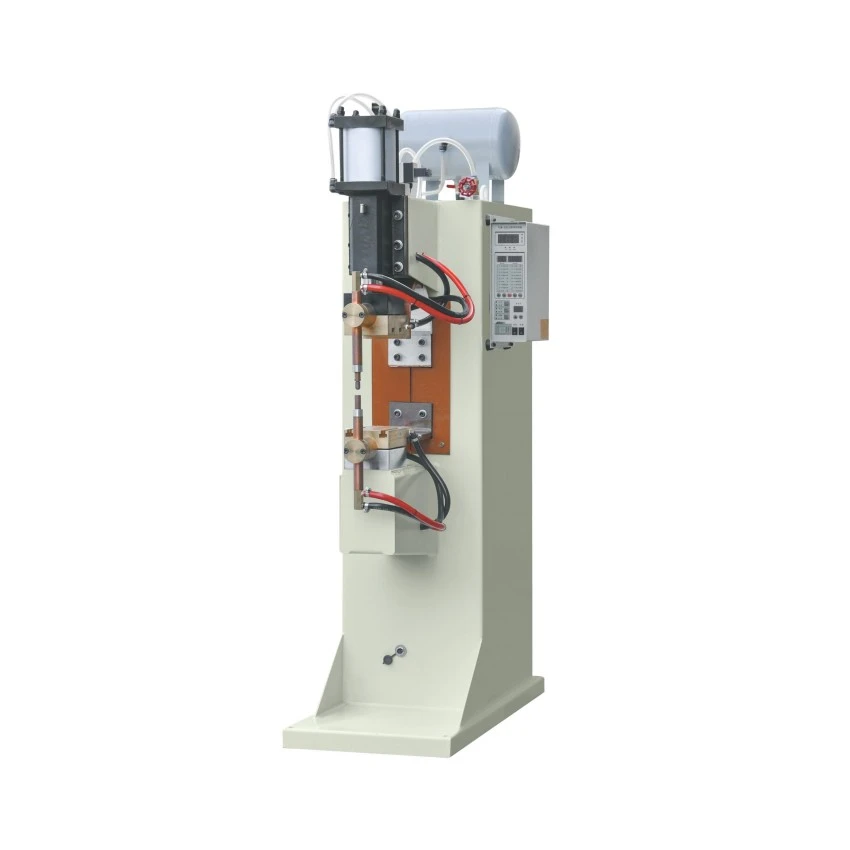

Pneumatic Spot Welder

The Pneumatic Spot Welder is a resistance welding system that utilizes compressed air to drive electrode actuation, delivering consistent and repeatable welding force for high-volume production environments. By replacing manual foot-pedal or hand-operated pressure with precise pneumatic control, these machines ensure uniform electrode force across every weld cycle, significantly improving weld quality consistency and operator productivity .

Available in power ratings from 15 KVA to over 200 KVA, with AC, MFDC inverter, and capacitor discharge technology options, pneumatic spot welders serve a wide range of industries including automotive manufacturing, electronics production, appliance assembly, and metal fabrication .

1. Pneumatic Actuation for Consistent Force
High-precision pneumatic cylinders with low-friction seals deliver rapid, controlled electrode movement. The adjustable air pressure system allows operators to fine-tune electrode force to match material thickness and welding requirements. Pneumatic actuation ensures that each weld receives identical pressure, eliminating the variability associated with manual operation .

2. High-Speed Production Capability
Pneumatic systems enable rapid electrode follow-up and fast cycling, significantly increasing throughput compared to manual or foot-operated welders. High-flow solenoid valves and quick-exhaust cylinders ensure immediate response for high-speed automated welding lines .

3. Advanced Microprocessor Control
Modern pneumatic spot welders feature digital control systems with:

Multi-stage discharge settings (preheat, welding, tempering) for optimized weld quality

Constant current, constant voltage, and constant heat control modes for process stability

Program storage for multiple weld schedules (typically 9–15 sets) enabling rapid product changeover

Slow rise / slow drop functions to reduce spatter and improve weld appearance

4. Robust Construction

Heavy-Duty Frame: Integrated high-strength steel construction with anti-impact and anti-vibration characteristics, ensuring zero deflection under high-pressure operation

High-Quality Transformer: Full copper water-cooled transformer with imported silicon steel laminations and epoxy resin encapsulation for high duty cycle and extended service life

Multi-Channel Cooling System: Forced water cooling for transformer, thyristors, and electrodes ensures reliable long-term operation

5. Flexibility & Adaptability

Supports both spot welding and projection welding configurations

Adjustable electrode stroke and force for diverse workpiece geometries

Optional extended-arm configurations for deeper throat depth requirements

6. Safety & Automation Features

Foot pedal or PLC-controlled operation for hands-free triggering

Water pressure and air pressure monitoring with alarm protection

Emergency stop and fault diagnosis systems

Optional integration with robotic cells and automated production lines

Automotive Manufacturing
Structural components, body panels, chassis assemblies, seat frames, and battery pack interconnects. Pneumatic actuation ensures consistent weld quality in high-volume production lines .

Electronics & Electrical Components
Battery tab welding for cylindrical cell packs (e.g., 18650), terminal connections, and precision electronic assemblies requiring repeatable, low-resistance welds .

Appliance Industry
Sheet metal enclosures for refrigerators, washing machines, air conditioners, and other household appliances .

Metal Fabrication & Wire Products
Wire mesh, hardware components, sheet metal assemblies, and general fabrication requiring consistent, high-quality spot welds .

Construction & Heavy Fabrication
Lightweight metal framing, steel structures, and components requiring robust, reliable welds .

Consistent Weld Quality: Pneumatic actuation eliminates operator-dependent pressure variability, ensuring uniform welds across every cycle

High Productivity: Rapid cycling and automated operation significantly increase throughput

Process Flexibility: Supports multiple materials, thicknesses, and welding configurations

Low Maintenance: Robust construction with quality components minimizes downtime

Industry 4.0 Ready: Digital controls and optional communication interfaces support data collection and integration with smart factory systems

Proven Reliability: Manufactured to ISO standards with CE certification
