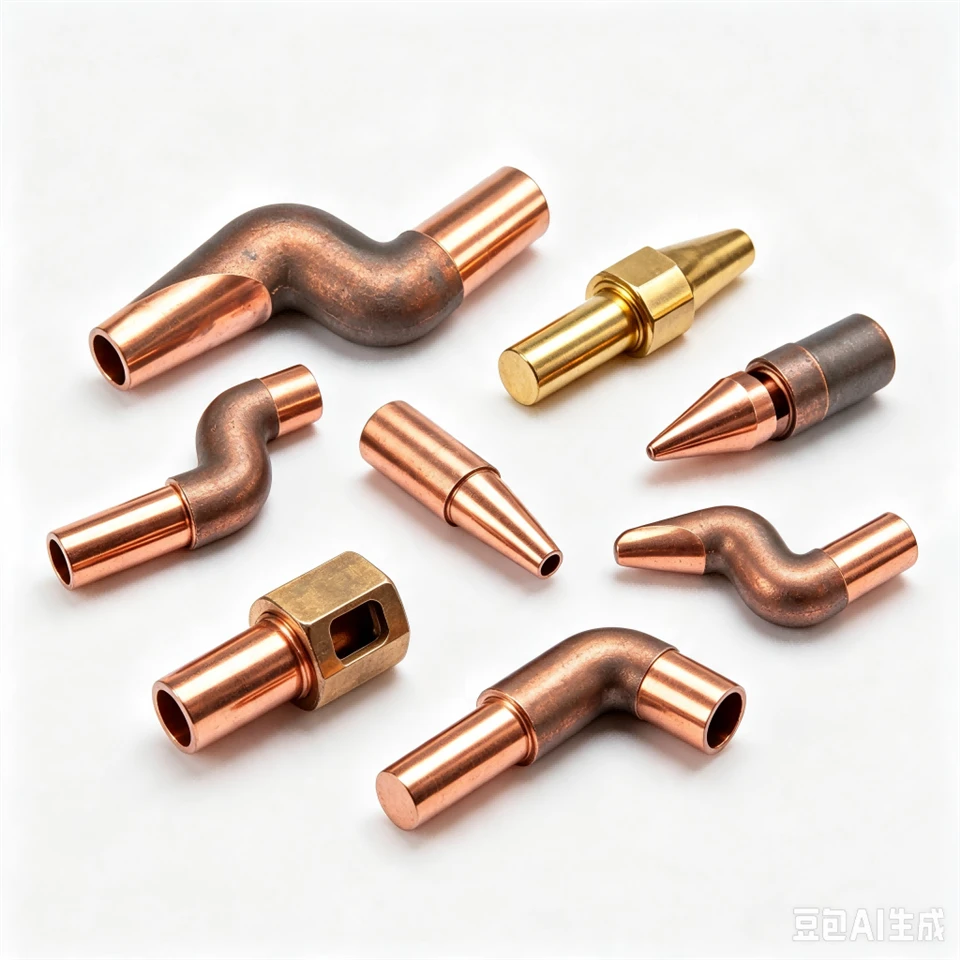

Spot Welding Machine Electrode

The spot welding machine electrode is the most critical consumable component in resistance spot welding, fulfilling three core functions: conducting welding current, transmitting electrode force, and rapidly dissipating heat from the welding zone. Electrode quality directly determines weld strength, welding consistency, and production efficiency. Our electrodes are manufactured from high-quality tungsten, molybdenum, and their alloys, combined with high-conductivity copper alloy shafts, using deep densification treatment and advanced metallurgical bonding technology. They are suitable for stationary spot welders, portable spot welders, and robotic welding guns.

1. Deep Densification Treatment for Extended Service Life

Each electrode tip undergoes a deep densification process, resulting in a dense and uniform internal structure free from porosity and cavity defects. Compared to standard electrodes without this treatment, our products offer significantly higher density, more homogeneous internal organization, and substantially longer service life.

2. 100% Metallurgical Bond (Back-Cast Technology)

Our advanced back-cast manufacturing technology achieves a 100% void-free metallurgical bond between the electrode insert and the copper alloy shaft. Key benefits include:

Minimized contact resistance - No air gaps at the joint interface, maximizing current transmission efficiency

Consistent thermal conductivity - Efficient tip cooling prevents overheating and premature failure

Reduced energy consumption - Proven to significantly lower required welding current, saving energy costs

Superior bending strength - The flawless bond delivers much higher bending resistance compared to conventional soldered electrodes

In contrast, insert electrodes manufactured by soldering processes contain cavities at the joint interface, resulting in variable contact resistance, inconsistent cooling performance, and shorter service life.

3. Fine and Uniform Grain Structure

Our materials feature an extremely homogeneous microstructure with finely distributed elongated lanthanum oxide particles, ensuring consistently high density and excellent hardness across the entire cross-section. This translates to:

Constant resistance during the welding process

No chipping or flaking

Excellent machinability

Reproducible welding quality

4. Superior Thermal and Electrical Conductivity

Tungsten-copper composite materials combine the high strength and melting point of tungsten with the excellent thermal and electrical conductivity of copper. The electrode tip withstands temperatures approaching 2000°C and electrode forces up to 450 MPa during welding, while rapidly transferring heat to the shank for dissipation.

5. Non-Sticking and Erosion-Resistant

Tungsten and molybdenum materials naturally resist adhesion to workpieces, effectively preventing welding defects caused by electrode sticking. Their high melting point ensures the electrode tip maintains good geometry through multiple welding cycles, reducing dressing frequency.

Our electrodes are suitable for the following resistance welding processes:

Spot Welding

Roller Seam Welding

Projection Welding

Upset Welding

Thermode Welding
