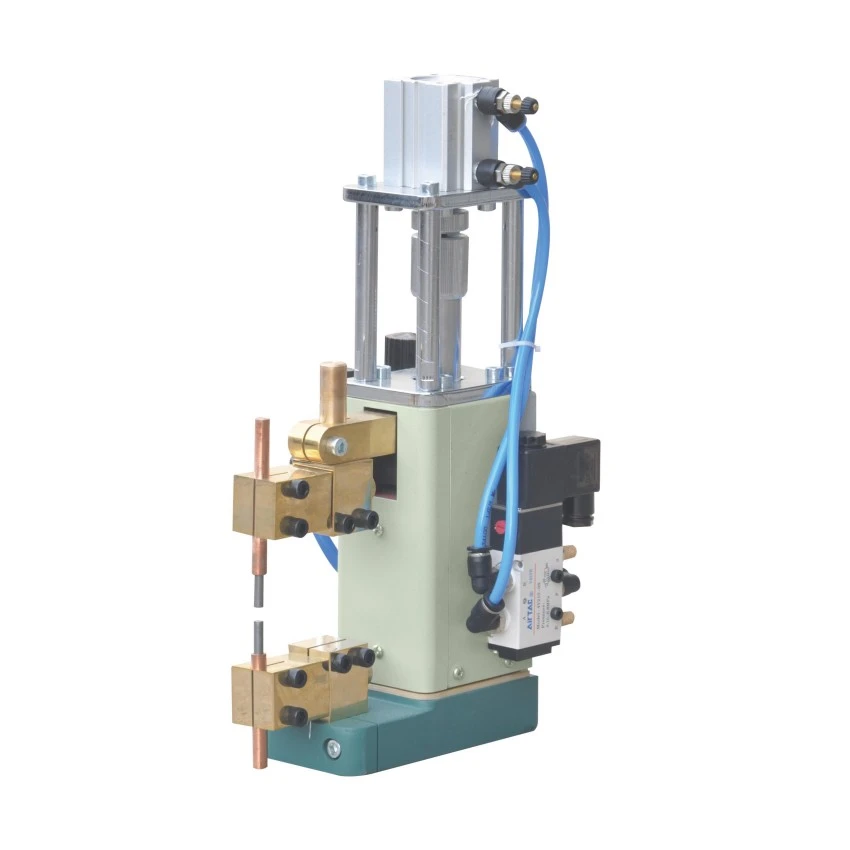

Precision Spot Welder

The Precision Spot Welder is a specialized resistance welding system engineered for joining delicate and miniature metal components with exceptional accuracy and minimal thermal impact. Employing advanced inverter or linear DC technology, this machine delivers precisely controlled current pulses to create consistent, high-quality welds on thin-gauge materials and heat-sensitive parts where conventional welding would cause distortion or damage.

Ideal for electronics, medical device, battery, and precision manufacturing applications, this welder ensures superior weld quality, repeatability, and process stability for the most demanding production environments.

1. Ultra-Precise Current Control
Advanced closed-loop feedback systems regulate welding current, voltage, or power with microsecond-level accuracy. Multi-stage current discharge with slow rise and slow drop functions effectively reduces weld spatter and improves weld quality. Three-stage heating settings with current ramp up/down accommodate complex welding requirements.

2. High-Frequency Inverter Technology
Inverter-based DC output delivers smooth welding current without the zero-crossing interruption of AC systems, improving thermal efficiency and weld consistency. Operating at frequencies of 1kHz–4kHz with time control precision as fine as 0.25ms, these systems achieve control accuracy 20 to 80 times greater than conventional AC welders. Power factor reaches up to 98% for significant energy savings.

3. Precision Welding Head Design
High-strength body structure with linear guide rails ensures excellent rigidity and prevents electrode deflection under pressure. Adjustable vertical pressure mechanisms and high-performance pneumatic systems provide smooth, controlled electrode movement for consistent weld quality.

4. Intelligent Control & Monitoring

Microcomputer-based control with programmable weld schedules (9–20 sets) for multi-product flexibility

Digital display and HMI touchscreen interface for intuitive operation

Built-in weld monitoring for current, voltage, and power with fault diagnosis and alarm functions

RS-232 data communication for automated integration (optional)

5. Compact & Energy-Efficient Design
Desktop form factor saves valuable workspace while delivering industrial-grade performance. Water-cooled electrodes and transformers ensure stable operation during extended production runs.

Electronics & Electrical Components
Switches, terminal wires, silver contacts, chip inductors, coils, fuses, conductive terminals, and hardware components requiring precise, reliable connections.

Battery Manufacturing
Lithium battery packs, power battery assemblies, battery tabs, and metal strip welding with consistent quality and minimal heat input.

Medical Devices
Precision components for medical instruments and equipment where weld integrity and biocompatibility are critical.

Automotive & Aerospace
Sensors, connectors, and fine electronic assemblies requiring high-reliability welds under stringent quality standards.

Instrumentation & Metering
Precision instruments, gauges, and metering devices requiring aesthetic, consistent welds without contamination.

Unmatched Precision: Closed-loop feedback control ensures consistent weld energy delivery for even the smallest parts

Superior Weld Quality: No false welds, minimal spatter, and excellent cosmetic appearance

Energy Efficiency: Up to 98% power factor and significant energy savings compared to AC alternatives

Automation Ready: Modern communication protocols (RESTAPI, MQTT, RS-232) for seamless production line integration

Proven Reliability: Built with premium components for 24/7 industrial operation
