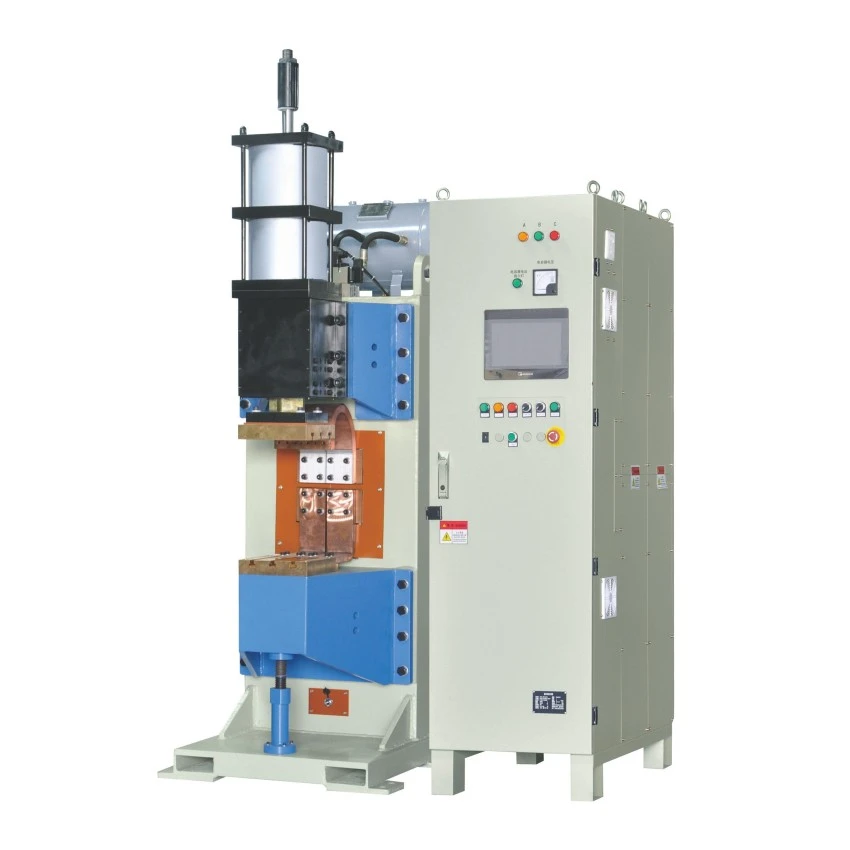

Projection Nut Welder

The Projection Nut Welder is a specialized resistance welding system designed for securely joining threaded nuts to metal components with exceptional strength and dimensional accuracy. Utilizing advanced projection welding technology, this machine delivers concentrated current at precisely formed projections on the nut, creating reliable, high-integrity welds while minimizing material distortion and heat-affected zones.

Ideal for high-volume manufacturing environments, this welder ensures consistent weld quality, rapid production cycles, and long-term operational reliability across automotive, electrical, appliance, and general fabrication industries.

1. Superior Welding Accuracy
Precise digital control systems regulate welding current, pressure, and timing with exceptional precision. The advanced microcontroller-based control enables multi-stage discharge settings, allowing for preheat, welding, and post-weld tempering cycles that effectively address issues such as false welds and weld expulsion common in multi-point projection welding.

2. High-Speed Production Capability
Equipped with high-flow pneumatic valves and quick-exhaust cylinders, the machine delivers rapid electrode response and follower action. Welding cycles are completed in milliseconds, significantly improving throughput while maintaining outstanding weld consistency.

3. Energy-Efficient Operation
The inverter-based DC welding technology achieves power factor improvement from 50% to over 90%, reducing energy consumption by up to 30% compared to conventional AC welders. Three-phase input minimizes grid impact and lowers overall operating costs.

4. Robust Construction for Continuous Duty

Welding Transformer: Manufactured with high-grade silicon steel laminations and epoxy resin encapsulation. The secondary circuit features precision-machined solid copper components with internal water cooling, ensuring minimal thermal deformation and extended service life.

Sturdy Frame: Heavy-duty structural design with low-friction welding heads ensures zero deflection under high electrode forces.

Durable Components: Utilizes high-quality thyristors from SEMIKRON, IXYS, or IR for superior precision and longevity.

5. Advanced Control & Monitoring

Digital display and HMI interface for program selection and error diagnostics

Secondary current feedback control for stable output regardless of line voltage fluctuations

Tip life and job counters for predictive maintenance planning

Automatic fault diagnosis and output shutdown upon anomaly detection
