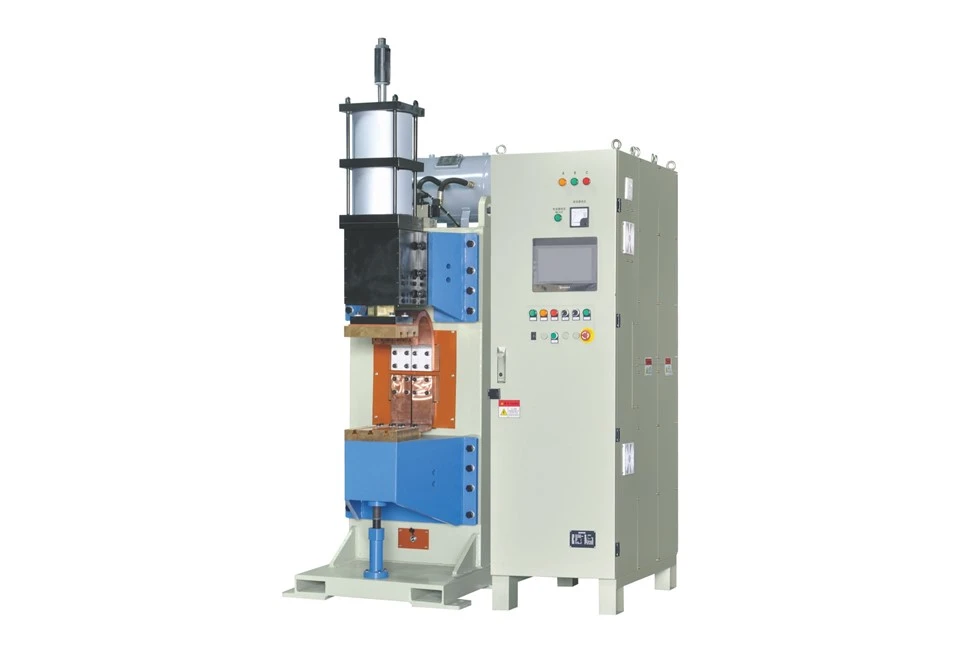

Industrial Spot Welding Machine

The Industrial Spot Welding Machine is a robust resistance welding system designed for high-strength, high-throughput joining of metal components in demanding manufacturing environments. Utilizing advanced AC or MFDC (Medium Frequency Direct Current) technology, these machines deliver concentrated electrical current and precisely controlled electrode force to create consistent, reliable weld nuggets across a wide range of material types and thicknesses.

Available in configurations from 25 KVA to 500 KVA, with power sources ranging from single-phase AC to three-phase MFDC inverter systems, this equipment series addresses the diverse needs of automotive, appliance, metal fabrication, and general industrial applications.

1. High-Strength Rigid Construction
The machine features a heavy-duty frame designed with anti-impact, anti-vibration, and high-rigidity characteristics. Internal reinforcement ribs ensure structural stability during continuous operation, minimizing deflection under high electrode forces and guaranteeing welding accuracy over extended production runs.

2. Precision Electrode Movement
Upper electrodes travel vertically along precision linear guide rails, delivering high repeat positioning accuracy for consistent weld placement. Smooth, rapid electrode actuation with low-friction seals and pilot-operated high-flow solenoid valves ensures quick response and excellent follow-up performance at high welding speeds.

3. Advanced Control & Programming
Multi-function microprocessor controllers support constant voltage, constant current, multi-stage discharge, slope control, and cluster control functions. Operators can store and recall multiple weld schedules, accommodating diverse product requirements with minimal changeover time.

4. Powerful Welding Performance

Capacity Range: 25 KVA to 500 KVA models cover light to heavy industrial needs

Maximum Short-Circuit Current: 14 KA to 76 KA depending on model

Welding Force: Up to 24,000 N at 0.5 MPa air pressure

Weldable Thickness: Capable of welding steel sheets up to 6+6 mm

5. Integrated Cooling System
Multi-pass forced water cooling circuits maintain stable operating temperatures during continuous duty, ensuring long-term reliability and extending electrode life.

6. Safety & Monitoring

Equipped with water pressure and air pressure switches with alarms to prevent operation under inadequate cooling or air supply conditions

Comprehensive fault diagnosis and automatic shutdown upon anomaly detection

Automotive Parts Manufacturing
Structural components, chassis assemblies, body panels, seat frames, and safety-critical fasteners requiring high-strength, consistent welds.

Appliance Industry
Refrigerator compressor mounts, washing machine drums, air conditioner chassis, and other household appliance metal assemblies.

General Metal Fabrication
Sheet metal products, cable trays, kitchen equipment, wire products, and custom metal components.

Heavy Industrial Equipment
Construction machinery components, agricultural equipment frames, and industrial structures requiring robust welded joints.

Proven Durability: Heavy-duty construction engineered for 24/7 continuous industrial operation

Process Flexibility: Supports both spot welding and projection welding configurations

Energy Efficiency: MFDC inverter options offer up to 98% power factor and significant energy savings

Reliable Support: Comprehensive technical support and after-sales service network
